Efficient Tapping Solutions for Pipelines
Yinlong's Saddle Clamps provide a simple, fast, and reliable method for creating a branch outlet on existing pipelines without the need for cutting or welding. Designed for use on PE and PVC pipes, these clamps are an essential component for irrigation systems, potable water distribution networks, and industrial fluid transport.
Our saddle clamps are manufactured from high-grade polypropylene for excellent chemical resistance and durability. The design ensures a leak-proof seal and a secure grip on the main pipe, facilitated by robust bolts and nuts, available in both galvanized and stainless steel options.
Our Saddle Clamp Range
A versatile range including basic clamps, reinforced models, and complete tapping assemblies.

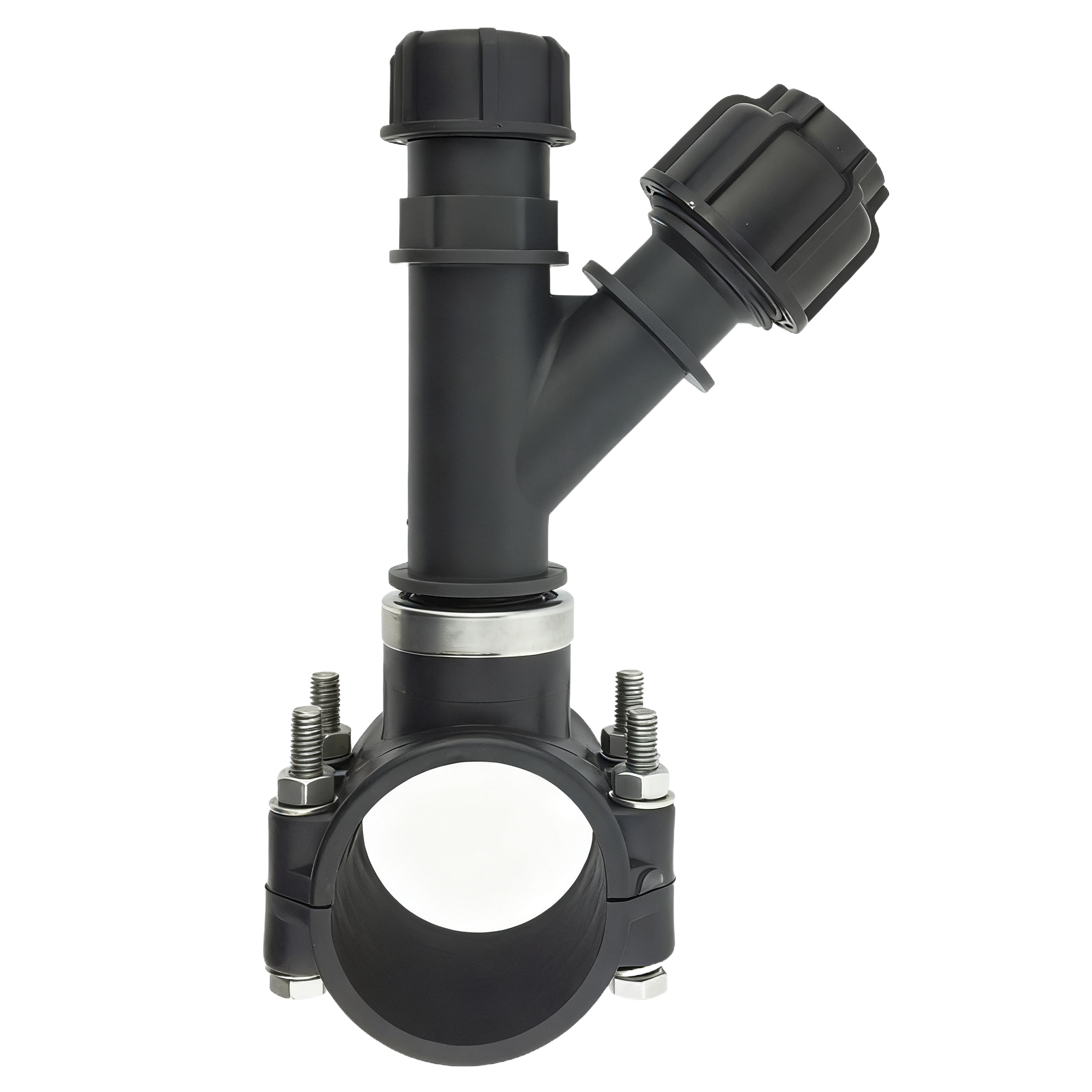

45° Tapping Saddle Assembly

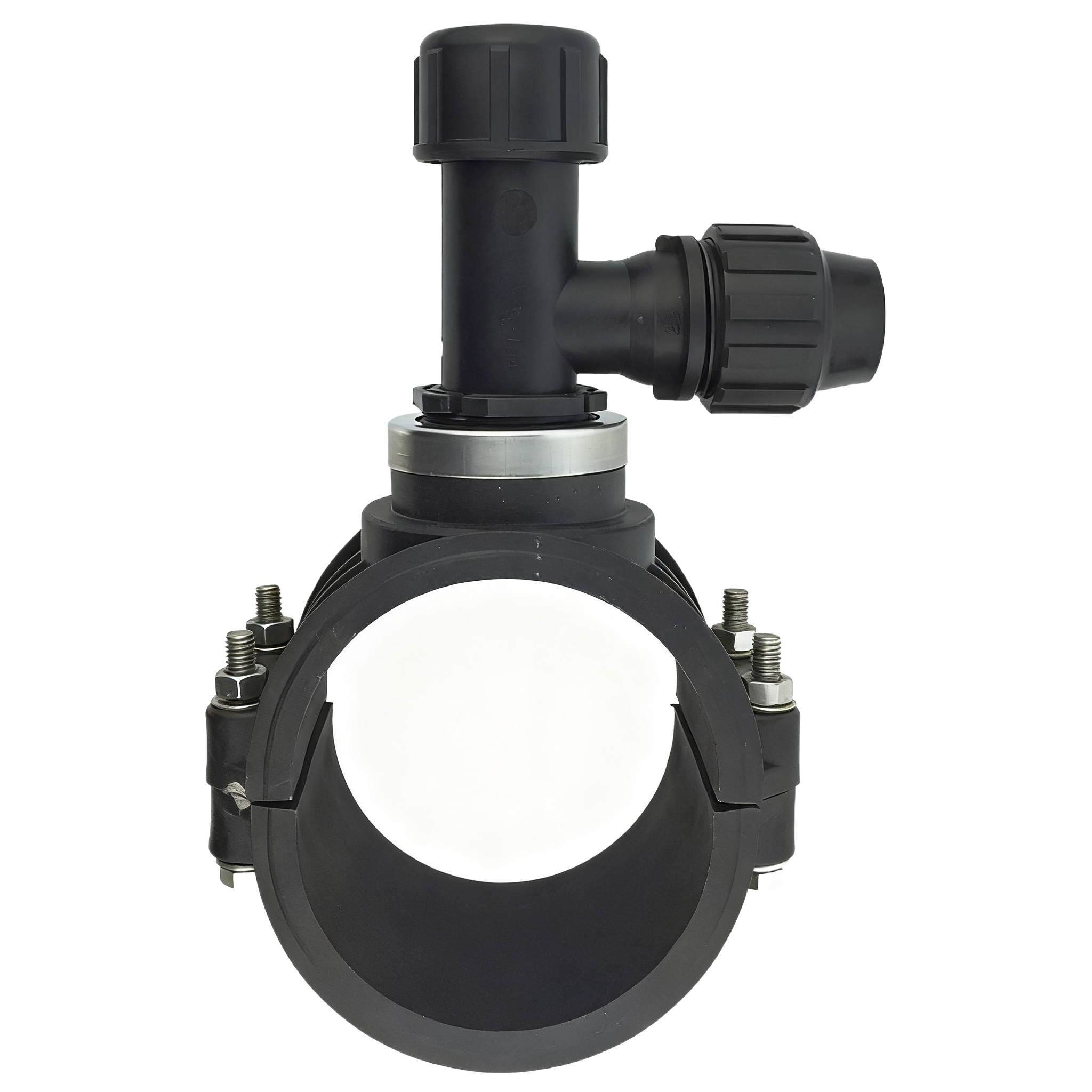

90° Tapping Saddle Assembly

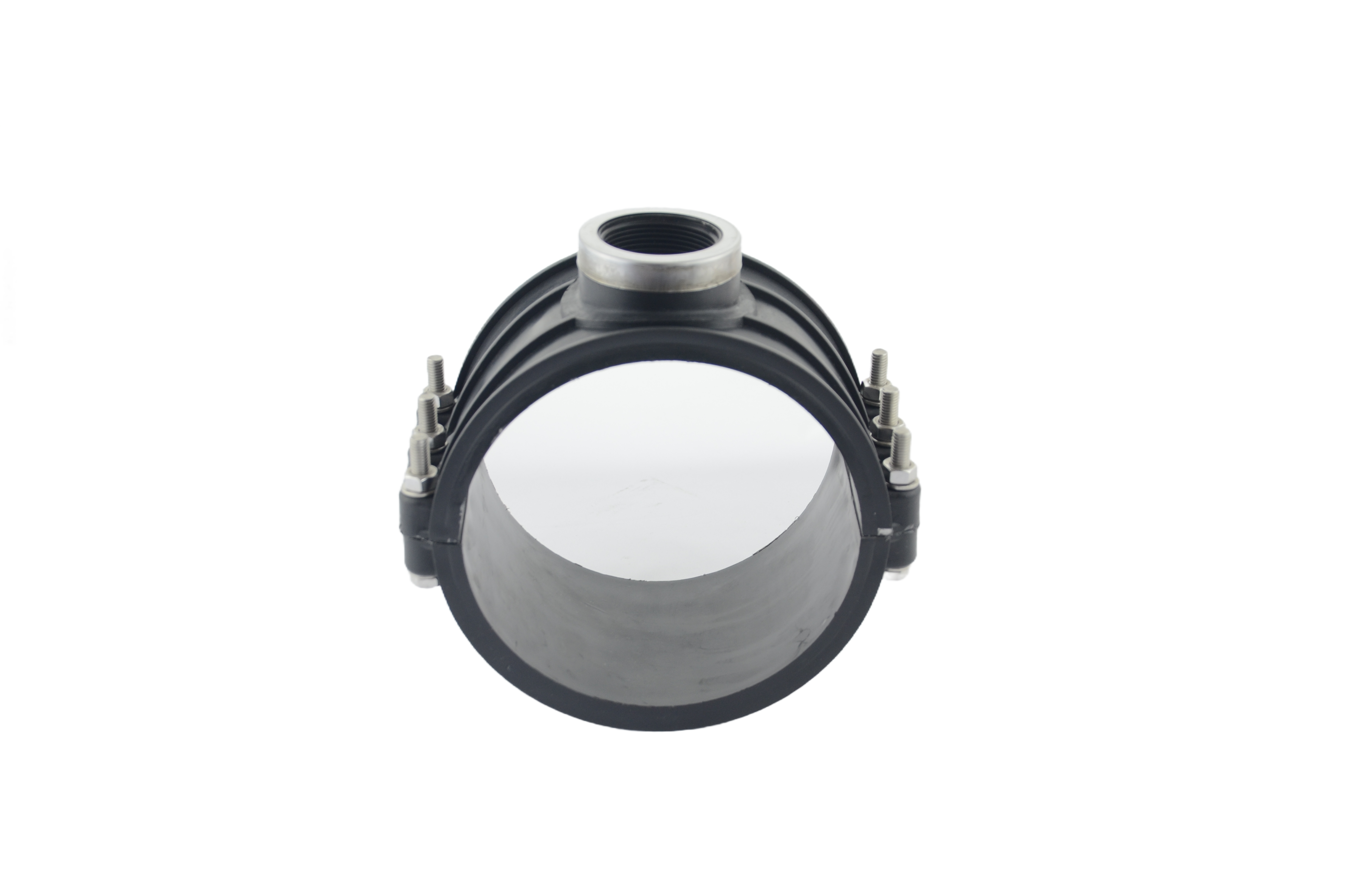

Double Clamp with Reinforced Ring

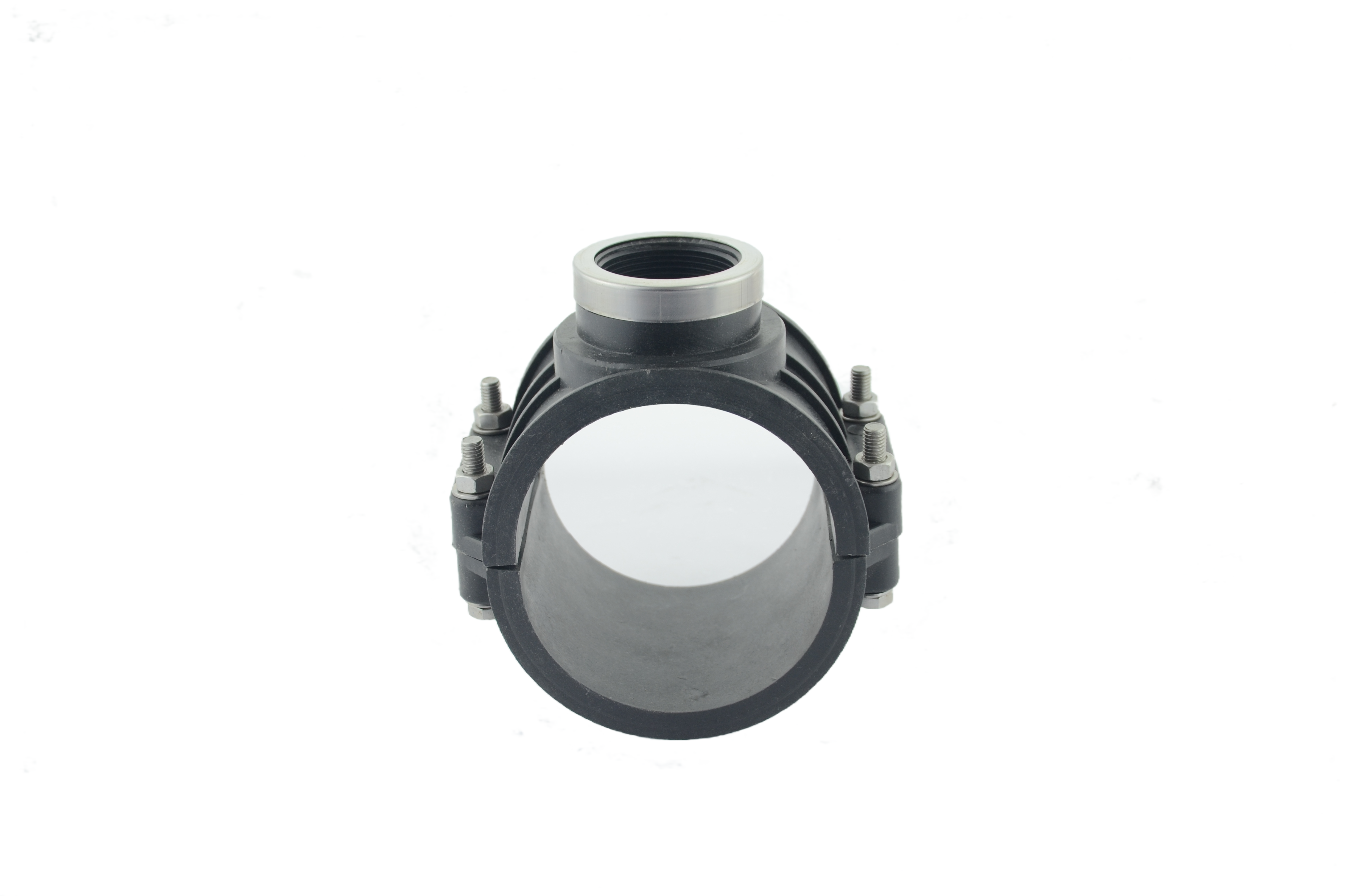

Single Clamp with Reinforced Ring

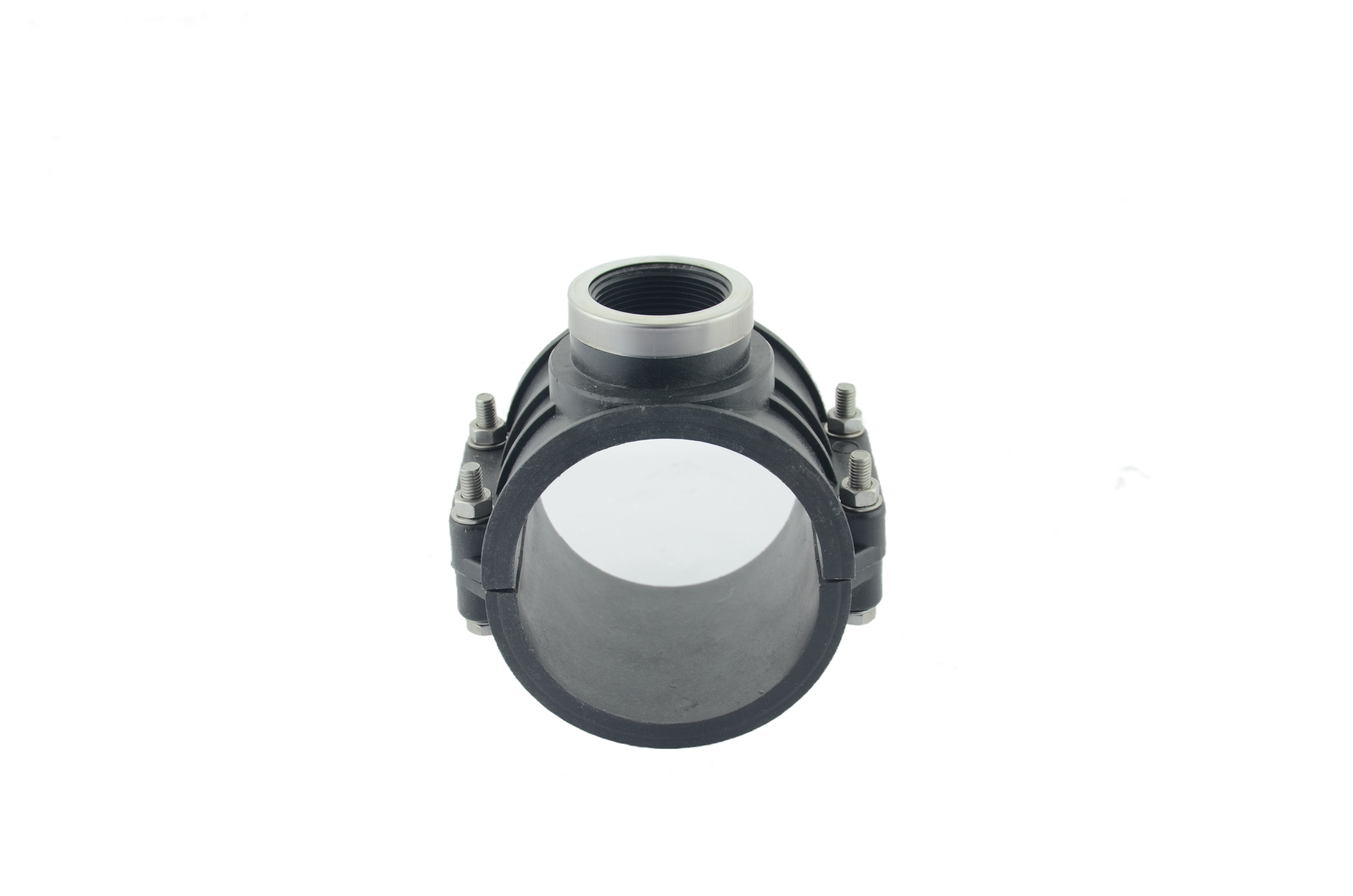

Basic Clamp Saddle

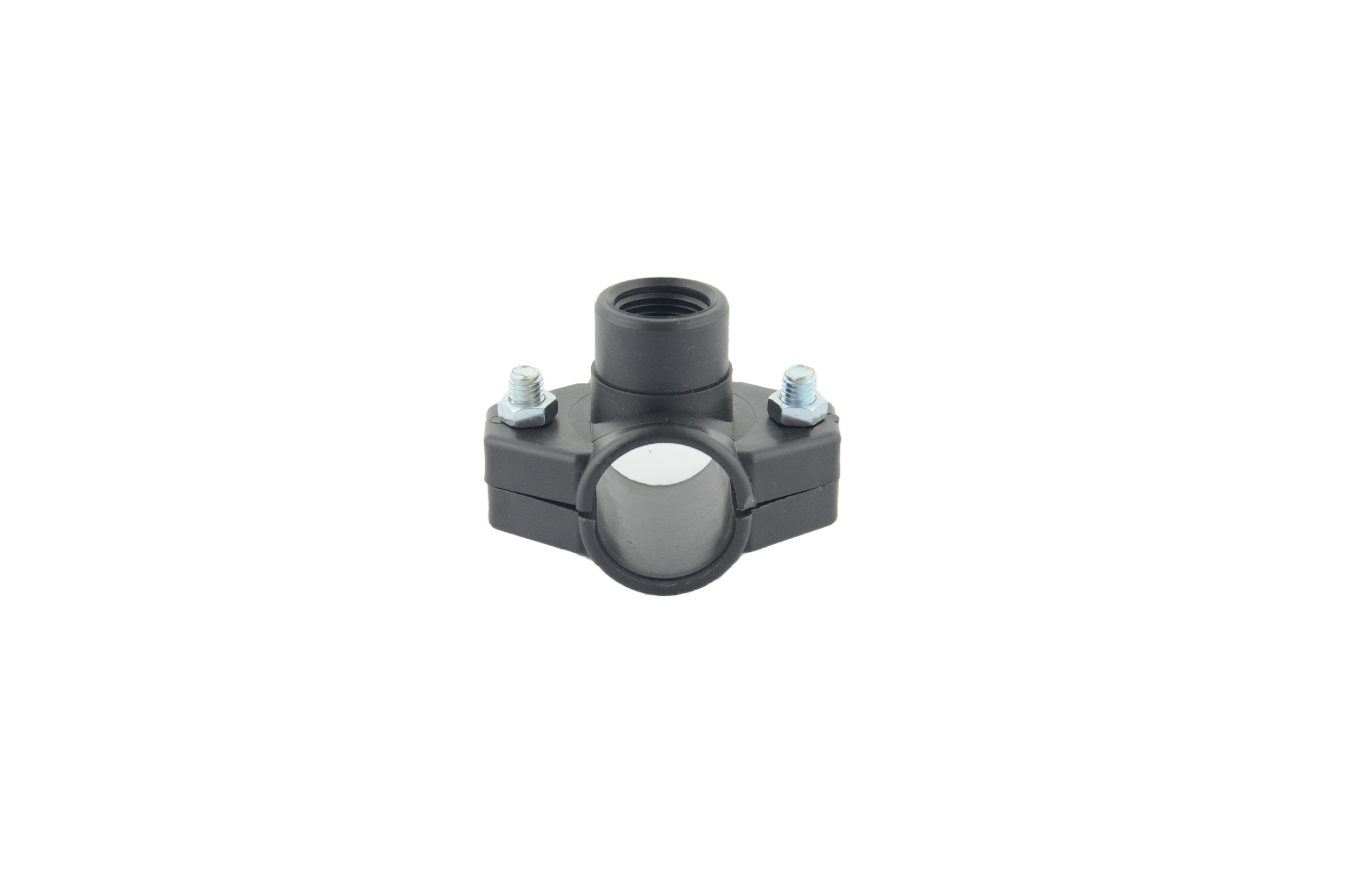

Small Clamp Saddle
Advantages and Specifications
Key Features & Benefits:
- Non-Invasive Installation: Allows for creating new outlets on live or empty lines without needing to cut the main pipe, saving time and labor.
- Durable Construction: Made from UV-stabilized Polypropylene (PP), offering high impact strength and resistance to corrosion and common chemicals.
- Secure Sealing: Equipped with a high-quality rubber O-ring that provides a reliable, watertight seal against the pipe surface.
- Reinforced Options: Models with stainless steel reinforcing rings on the threaded outlet provide superior strength for permanent installations and high-stress applications.
- Versatile Range: Available for a wide array of pipe diameters and outlet sizes to meet diverse project requirements.
Technical Specifications:
| Body Material | Polypropylene (PP) |
| Seal Material | NBR or EPDM Rubber O-Ring |
| Reinforcing Ring | SS304 Stainless Steel (on select models) |
| Bolts & Nuts | Galvanized Steel or SS304 Stainless Steel |
| Compatible Pipe | PE, HDPE, PVC |
| Main Pipe Sizes | From DN25 up to DN225 and beyond |
| Outlet Sizes | 32mm - 225mm |
| Working Pressure | Up to PN10 / 10 bar (145 psi) depending on size |
Find the Right Tapping Solution for Your Project
Download our complete saddle clamp catalog for detailed product codes, dimensions, and specifications.
